XTREME 145 DUO XTD 20

Description

Xtreme 145 Duo XTD has :

• Surface powder coat

• Snap-fit system and no visible screw

• Luminaire housing of extruded aluminium

• Bottom opening for easy maintenance

• LED PCB mounted on insert design with heat sink

• Pendant with cable suspension

• M6 bolt for M6 fastener

• Lens + Prismatic double diffuser with uniform illumination

• Glare control

• Energy-efficient LED with color rendering

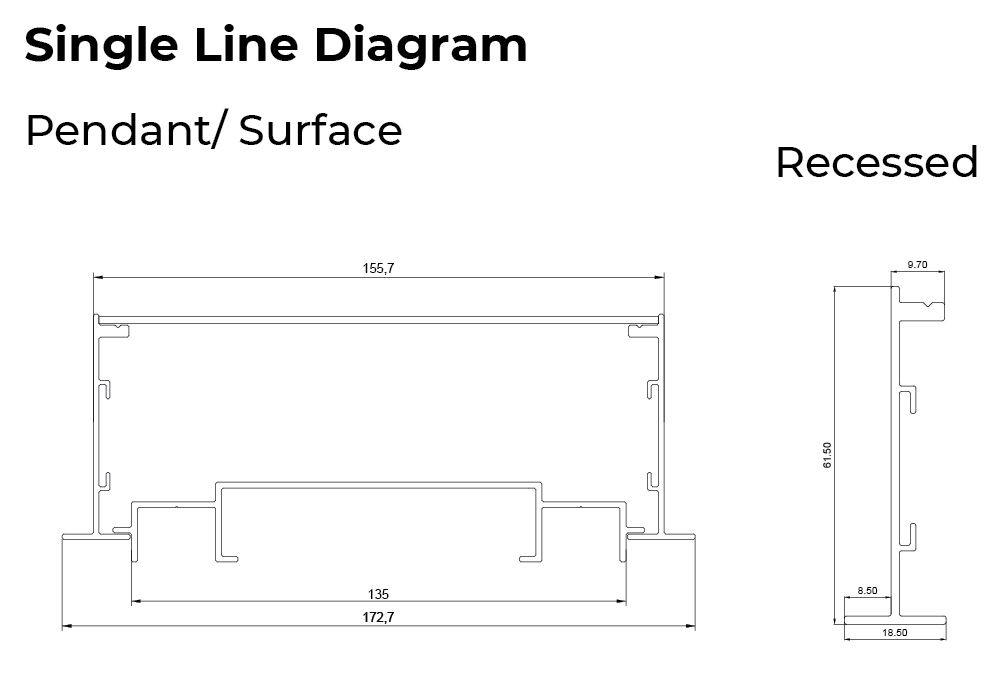

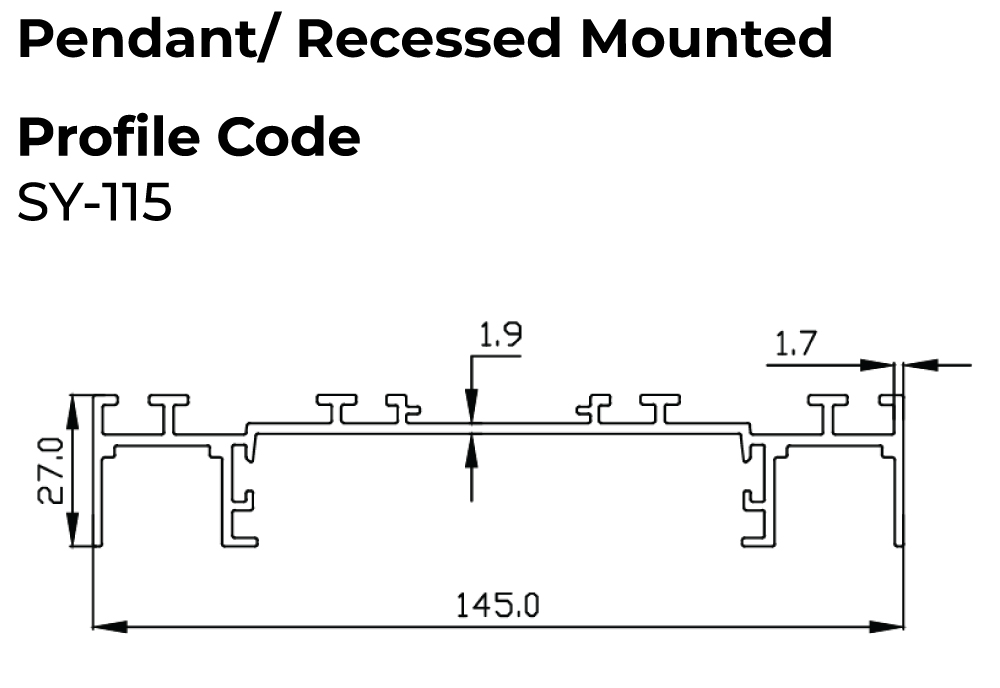

Single Line Diagram


XTREME 145 DUO XTD 20






Specifications

TYPES

  1. Pendant/ Recessed

QUICK INFO

  1. CRI >90
  2. Aluminium
  3. 3 SDCM
  4. Lens + Double Prismatic Diffuser
  5. 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
  6. L70 @50,000h
  7. ON/OFF/, DALI-2 DT6 / DALI-2 DT8/ DALI +
  8. ON-OFF / ON-OFF (FLICKER FREE)

PRODUCT DATA & SPECIFICATION DOCUMENTS
