XTREME 145 DUO (DAISY-S)
Description
Xtreme 145 Duo (Daisy-S) has :
• Surface powder coat
• Luminaire housing of extruded aluminium
• Snap-fit system and no visible screw
• Bottom opening for easy maintenance
• LED PCB mounted on insert design with heat sink
• Pendant with cable suspension
• M6 bolt for M6 fastener
• Lens + Prismatic double diffuser with uniform illumination
• Energy-efficient LED with color rendering
• Glare control
/Xtreme-145-Duo_Daisy_icons.jpg){kind=icon}
/Xtreme-145-Duo_Daisy_color.jpg)
Specifications
TYPES

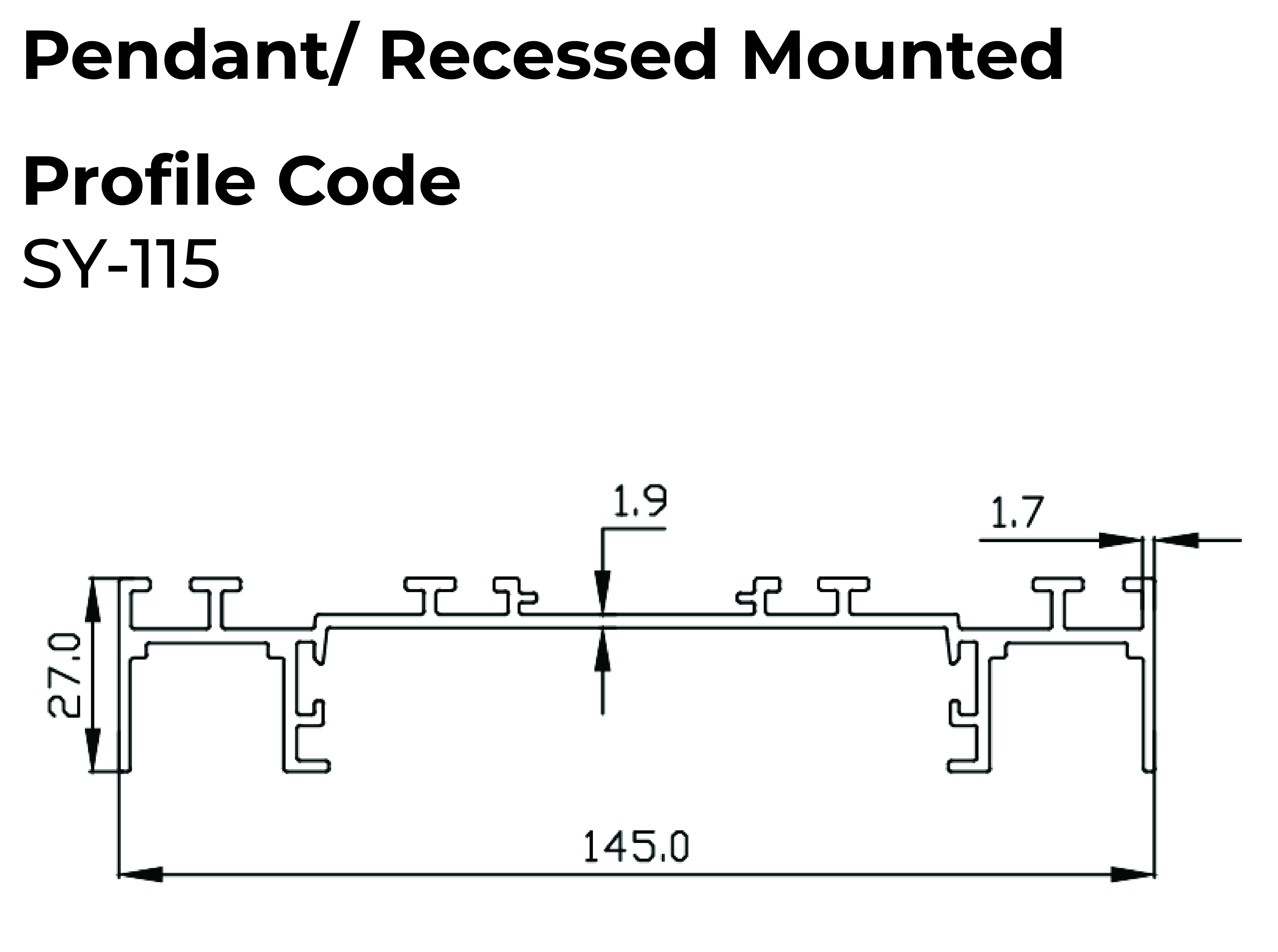

- Pendant/ Recessed
QUICK INFO
- 3 SDCM
- 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
- Lens + Double Prismatic Diffuser
- CRI >90
- Aluminium
- ON/OFF/, DALI-2 DT6 / DALI-2 DT8/ DALI +
- ON-OFF / ON-OFF (FLICKER FREE)
- POE (Power Over Ethernet)
- L70 @50,000h
- System lumen >100lm/W
