XTREM BENT 165

Description

Xtrem Bent 165 fixture has:

·        Luminaire housing of extruded aluminium

·        Xtrem 165 curve edge profile

·        Surface powder coated

·        LED PCB mounted on insert design with heat sink

·        Snap-fit system and no visible screws

·        Uniform illumination and glare control

·        Energy efficient LED with high colour rendering

·        Pendant using suspension cable with M6 bolt and fastener

·        Bottom opening for easy maintenance

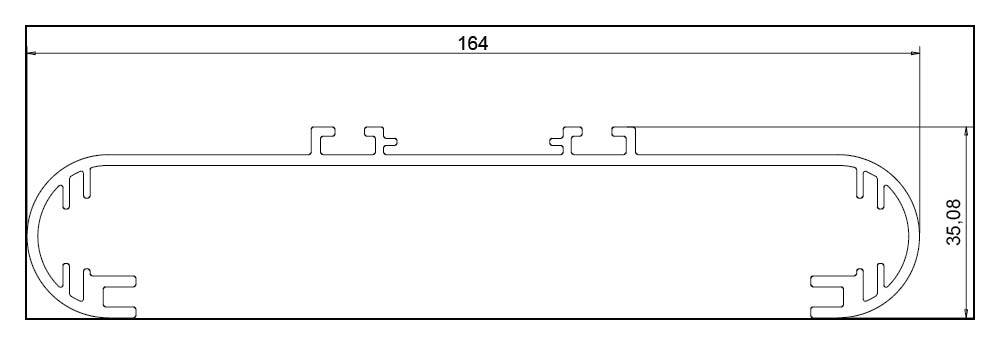

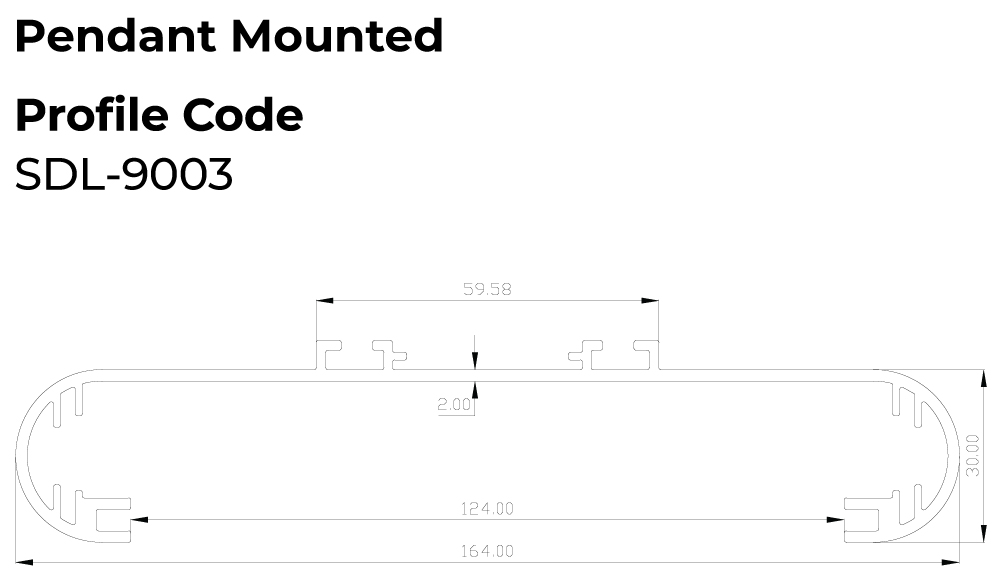

Single Line Diagram

Pendant

XTREM BENT 165

Specifications

TYPES

1. Pendant

QUICK INFO

1. 3000K /4000K / 5700K /6500K /WHITE TUNABLE
2. CRI >90
3. L70 @50,000h
4. Prismatic Diffuser
5. ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
6. 3 SDCM
7. Aluminium Die-cast
