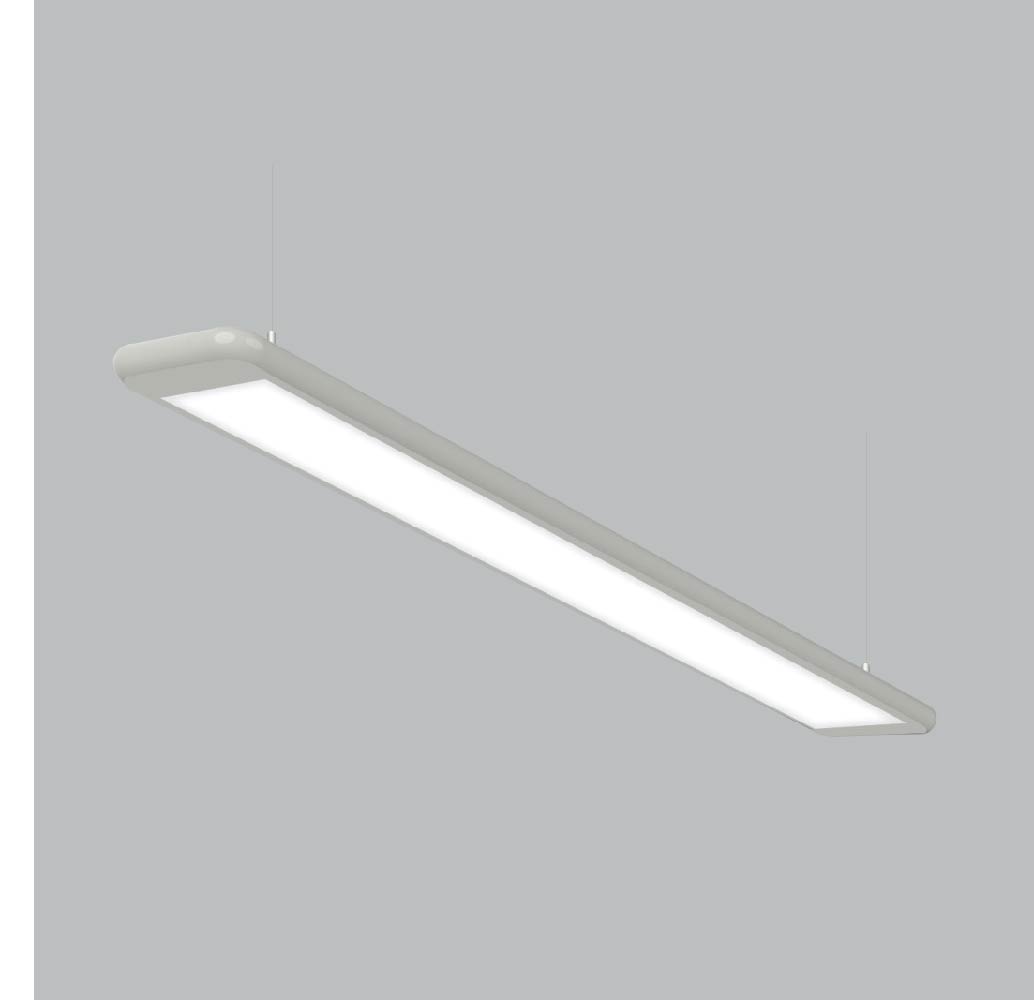

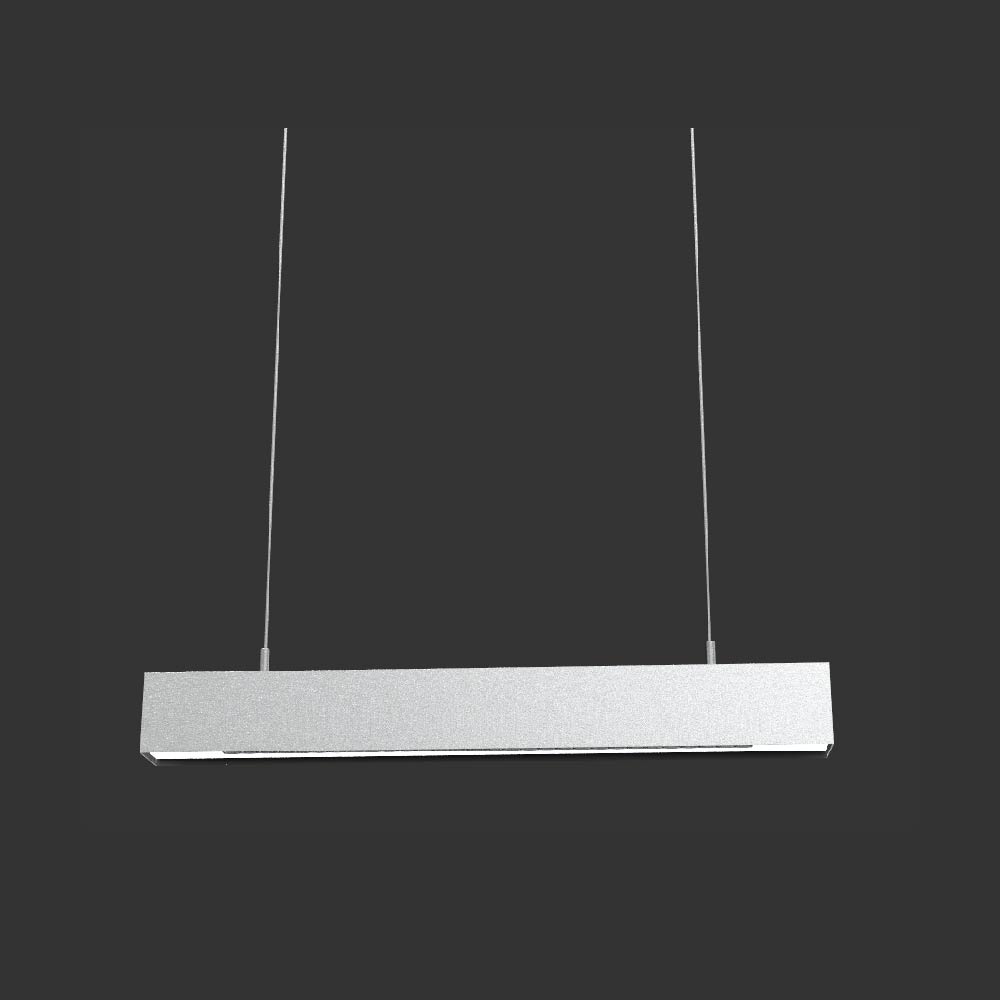

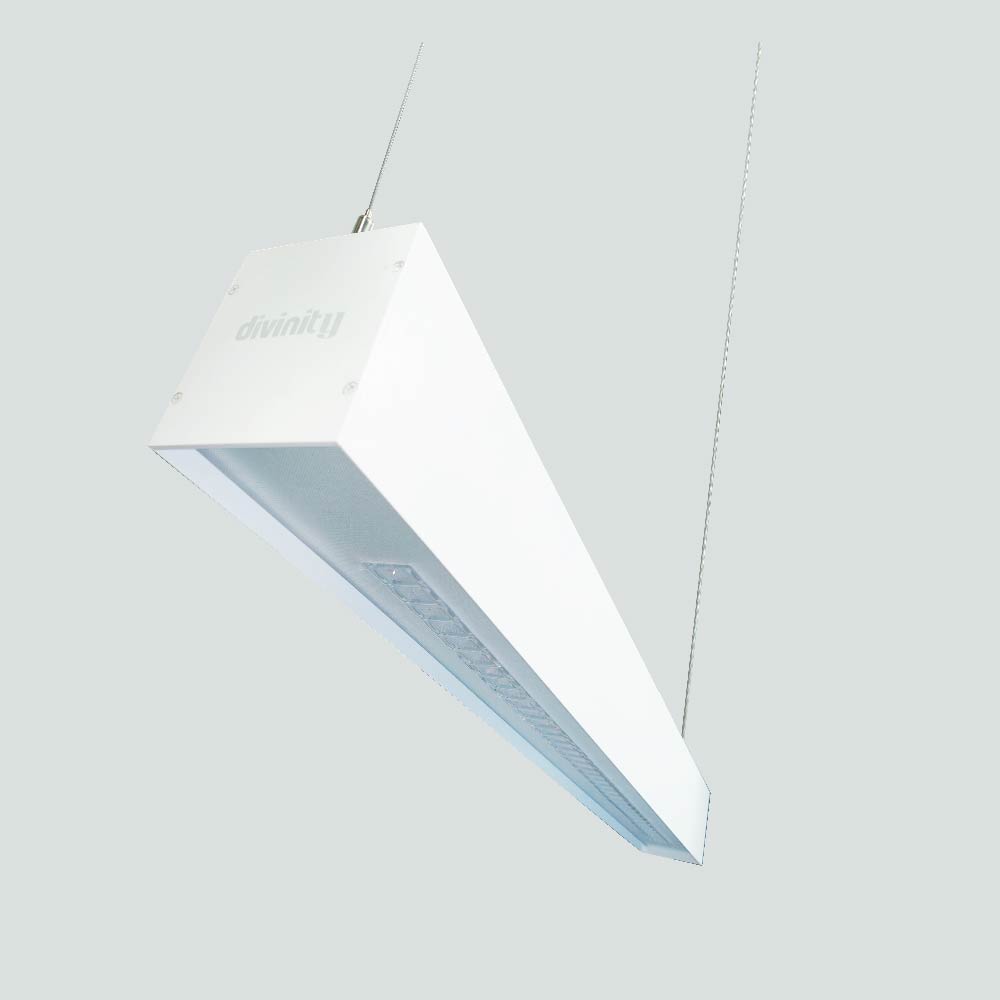

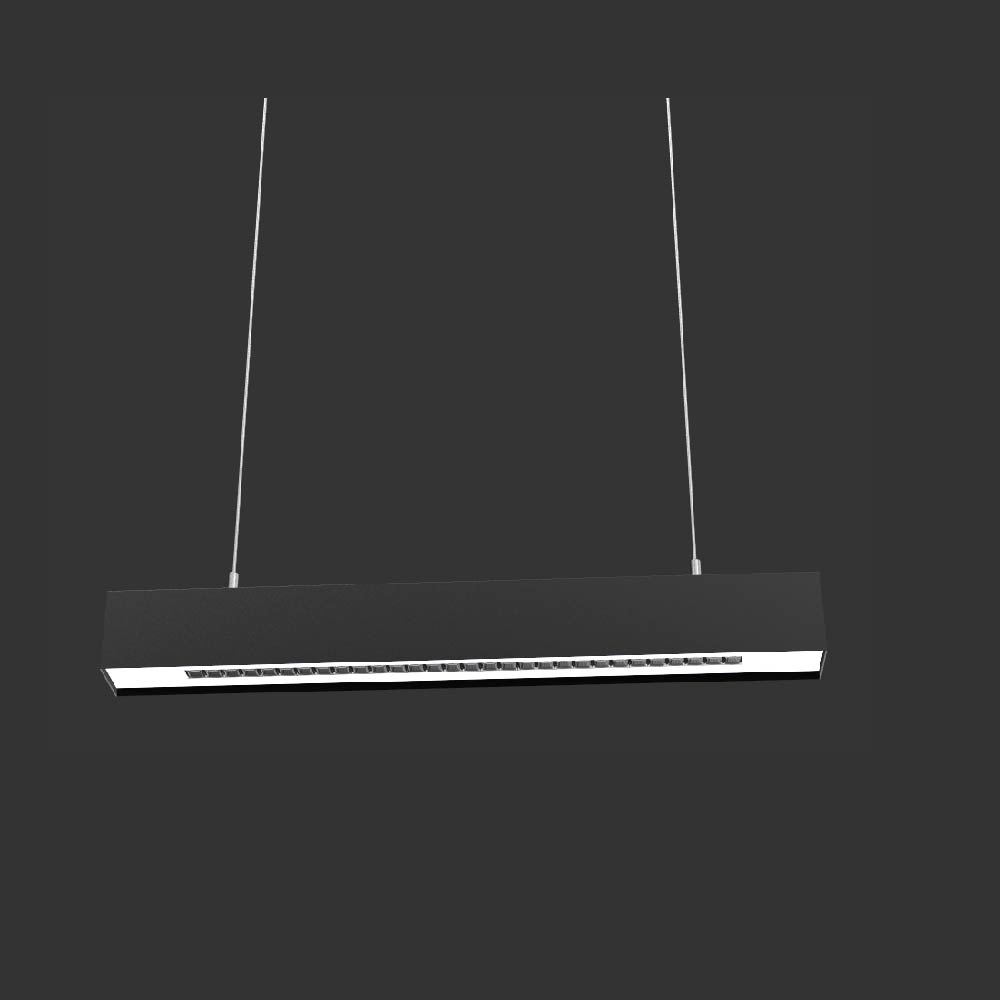

VIRAJ 100

Description

Viraj 100 fixture has:

·        Luminaire housing of extruded aluminium

·        Viraj 100 Direct, Direct-Indirect profile

·        Surface powder coated

·        LED PCB mounted on insert design with heat sink

·        Snap-fit system and no visible screws

·        Bottom opening for easy maintenance

·        Pendant with cable suspension

·        Dual Optics (Opal/ Prismatic Diffuser, + Lens)

·        Uniform Illumination and glare control

·        Energy-efficient LED with color rendering

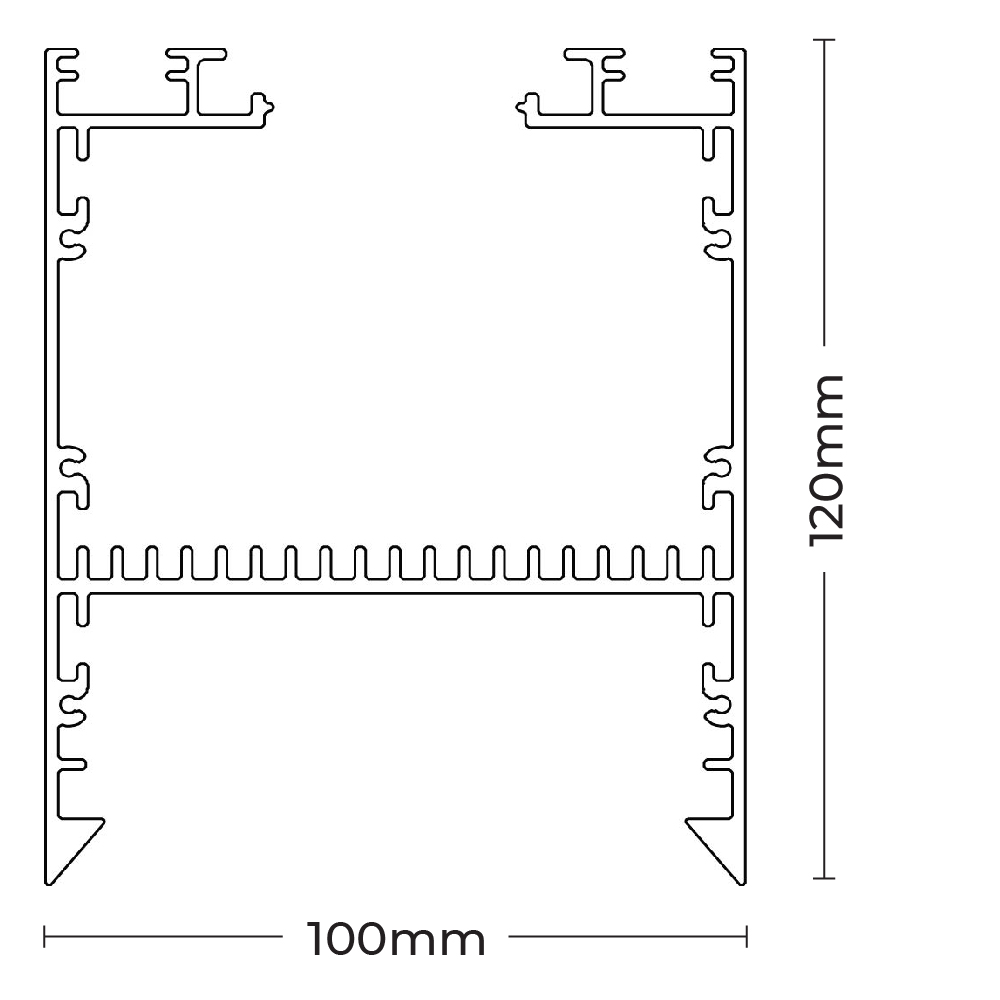

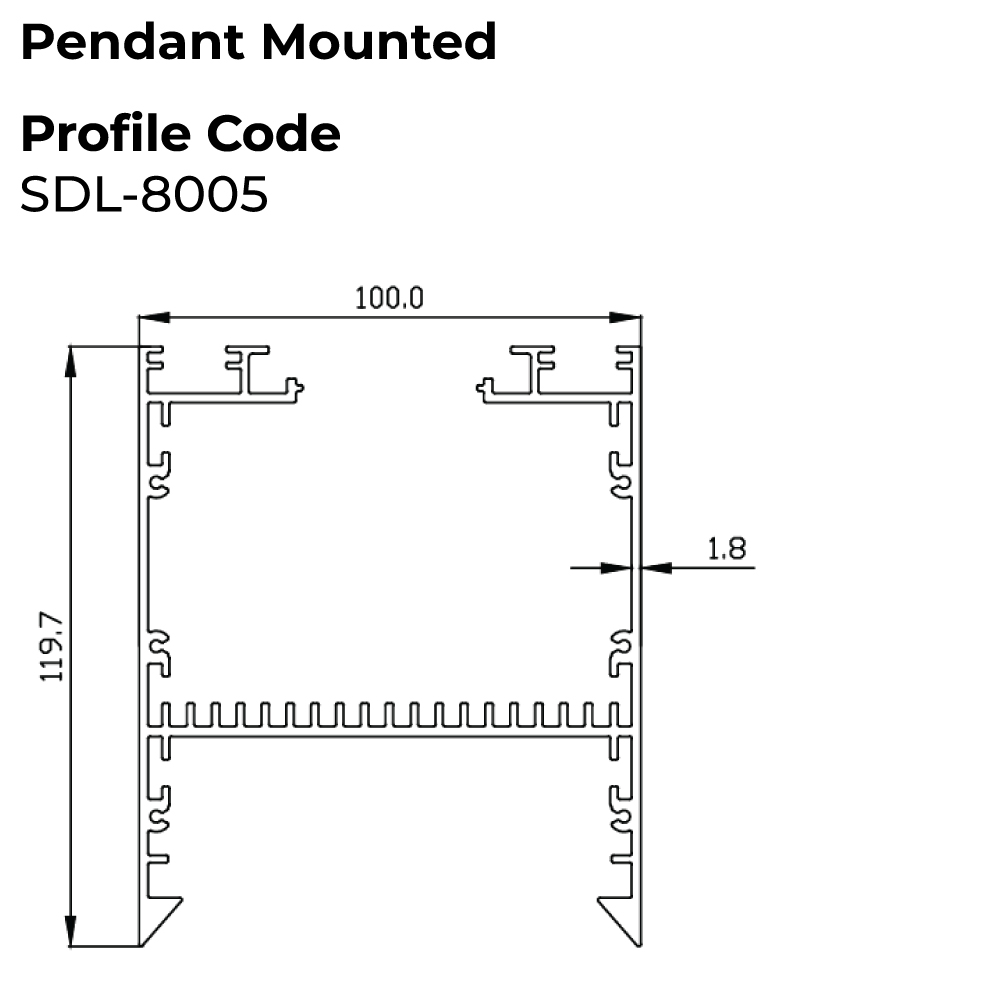

Single Line Diagram

Pendant

VIRAJ 100

Specifications

LED

1. CRI ≥ 90

TYPES

1. Pendant

QUICK INFO

1. Die-Cast Aluminium
2. Opal Diffuser + Lens
3. 3000K /4000K / 5700K /6500K /WHITE TUNABLE
4. ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
5. 3 SDCM
6. Prismatic Diffuser
7. L70 @50,000h
