VIRAJ 5690 DAISY CURVE
Description
Viraj 5690 Daisy Curve has:
• Extruded Aluminium Luminaire Housing
• Premium Finish Powder coating
• Snap- fit system with No visible screw
• Unique lens System
• 3 beam angle options 30°, 50° and widespread 80°
• Energy efficient LED with high colour rendering
• LED PCB mounted on insert design with heat sink
•Pendant using suspension cable with M6 bolt and fastener
• Bottom opening for easy maintenance

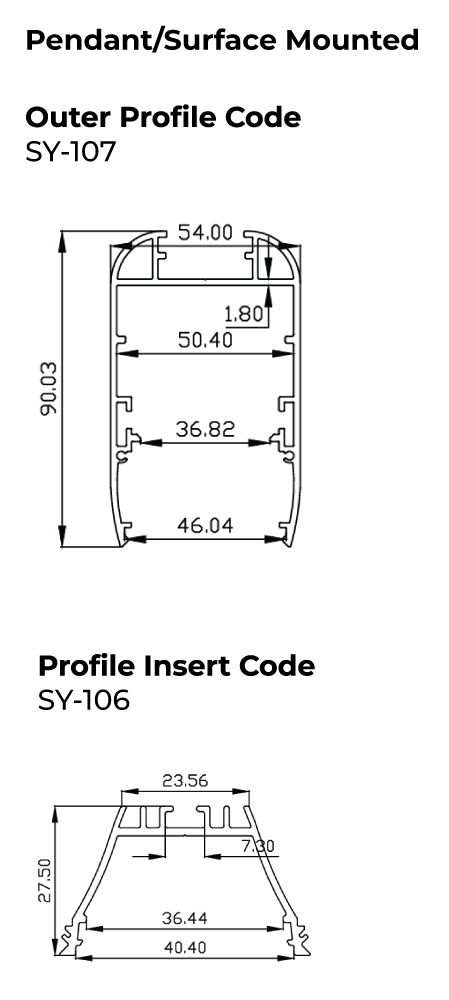

Single Line Diagram
Pendant/ Surface
VIRAJ 5690 DAISY CURVE
Specifications
TYPES
- Pendant/Surface
QUICK INFO
- L70 @50,000h
- Lens
- 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
- ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
- Aluminium
- CRI >90
