NEON TOP BEND 12 LED STRIP

Description

Neon Top Bend 12 LED Strip fixture has:

·        Mini corner series makes very easy and flexible application and installation for corner mount in cabinet, shelf etc.

·        Uniform, dot-free, smooth and comfortable luminary up to 5M[16.4ft.] run length

·        IP67 with endcap sealed by glue for indoor and outdoor usage

·        On field cuttable and assembly available to be any length

·        More flexible customization

·        More perfect of brightness and color consistency for the entire run length

·        Dimmable available with PWM signal

·        50,000h long lifespan, 5 years warranty

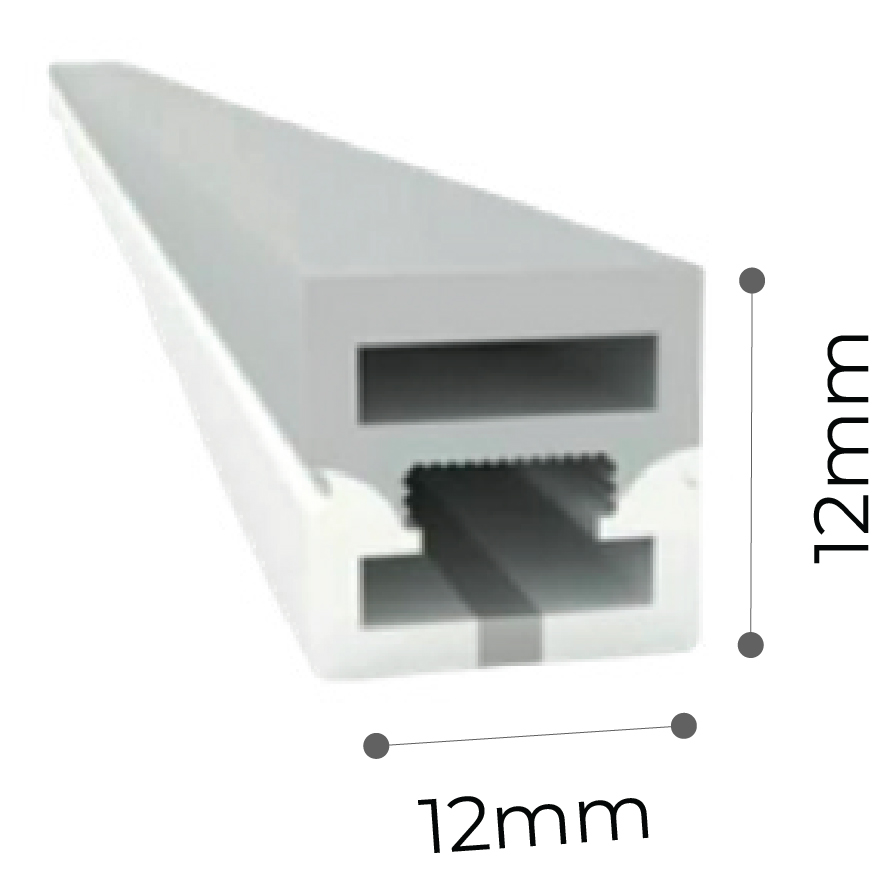

Single Line Diagram

NEON TOP BEND 12 LED STRIP

Specifications

TYPES

1. Surface

QUICK INFO

1. L70 @50,000h
2. SDCM < 3
3. IP Rating IP67
4. CRI >90
5. Silicon

CCT (COLOUR TEMPERATURE)

1. 2700K/ 3000K/ 4000K/ RGB/ RGBW

CONTROL

1. Non-Dimmable/ Dali-Dimmable/ RGB DMX512
