LENZ FOCUS

Description

Lenz Focus fixture has:

·        Extruded Aluminium Luminaire Housing

·        Premium Finish Powder coating

·        High efficiency Lens

·        Energy efficient LED with high colour rendering

·        LED PCB mounted on insert design with heat sink

·        Snap-fit system and no visible screw

·        Unique curved design and pattern possible

·        Pendant using suspension cable with M6 bolt and fastener

·        Bottom opening for easy maintenance

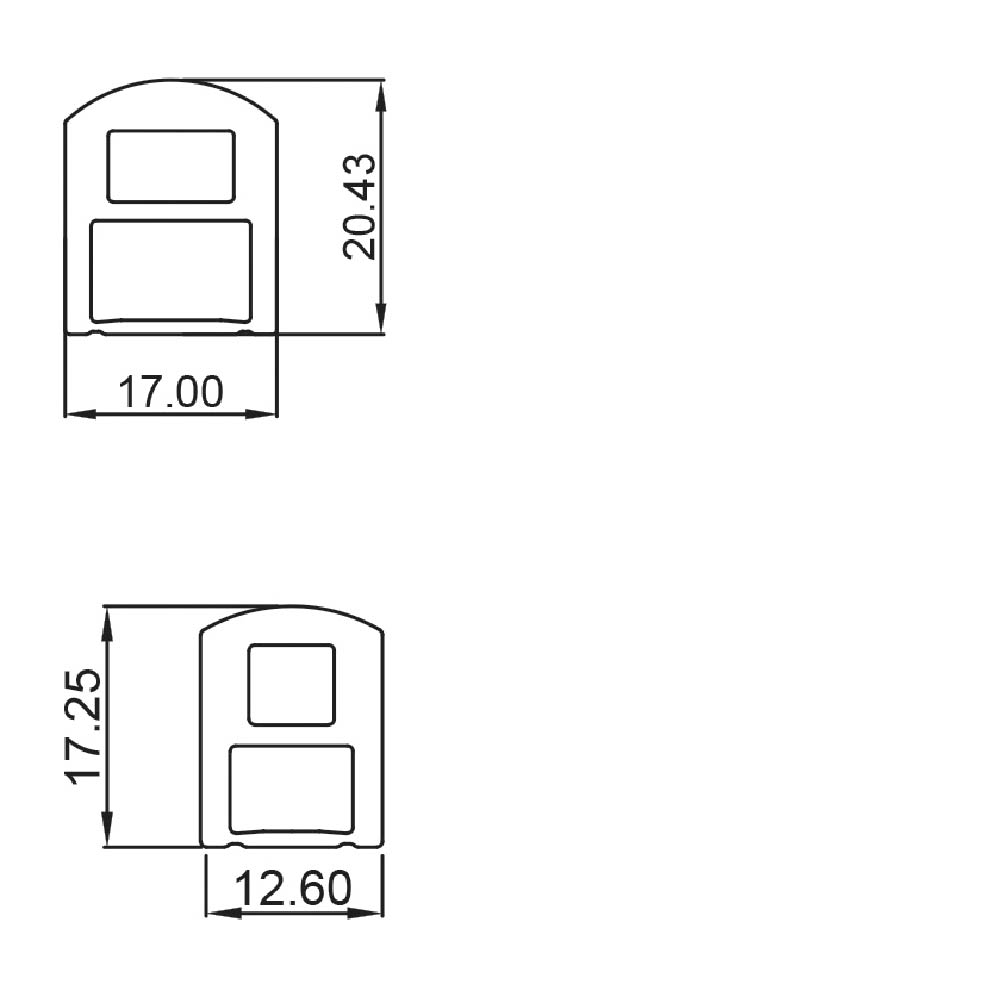

Single Line Diagram

Pendant

LENZ FOCUS

Specifications

LED

1. CRI ≥ 90

TYPES

1. Pendant

QUICK INFO

1. Lens
2. Aluminium Die-cast
3. L70 @50,000h
4. SDCM < 3
5. 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
6. ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
