FLEX SIDE BEND 12 LED STRIP

Description

 Flex side bend 12 LED Strip fixture has:

·        Very flexible top-bend in ultra-thin appearance

·        Onsite simple cutting and assembly operation, easy mounting way by adhesive tape

·        Dot-free linear and homogeneous lighting performance

·        Quite a short increment with high density LED array

·        More flexible customization

·        More perfect of brightness and color consistency for the entire run length

·        Much wider luminous surface, no dark area at the edge

·        Higher production efficiency and quality yield by adopting silicone extrusion processing technology

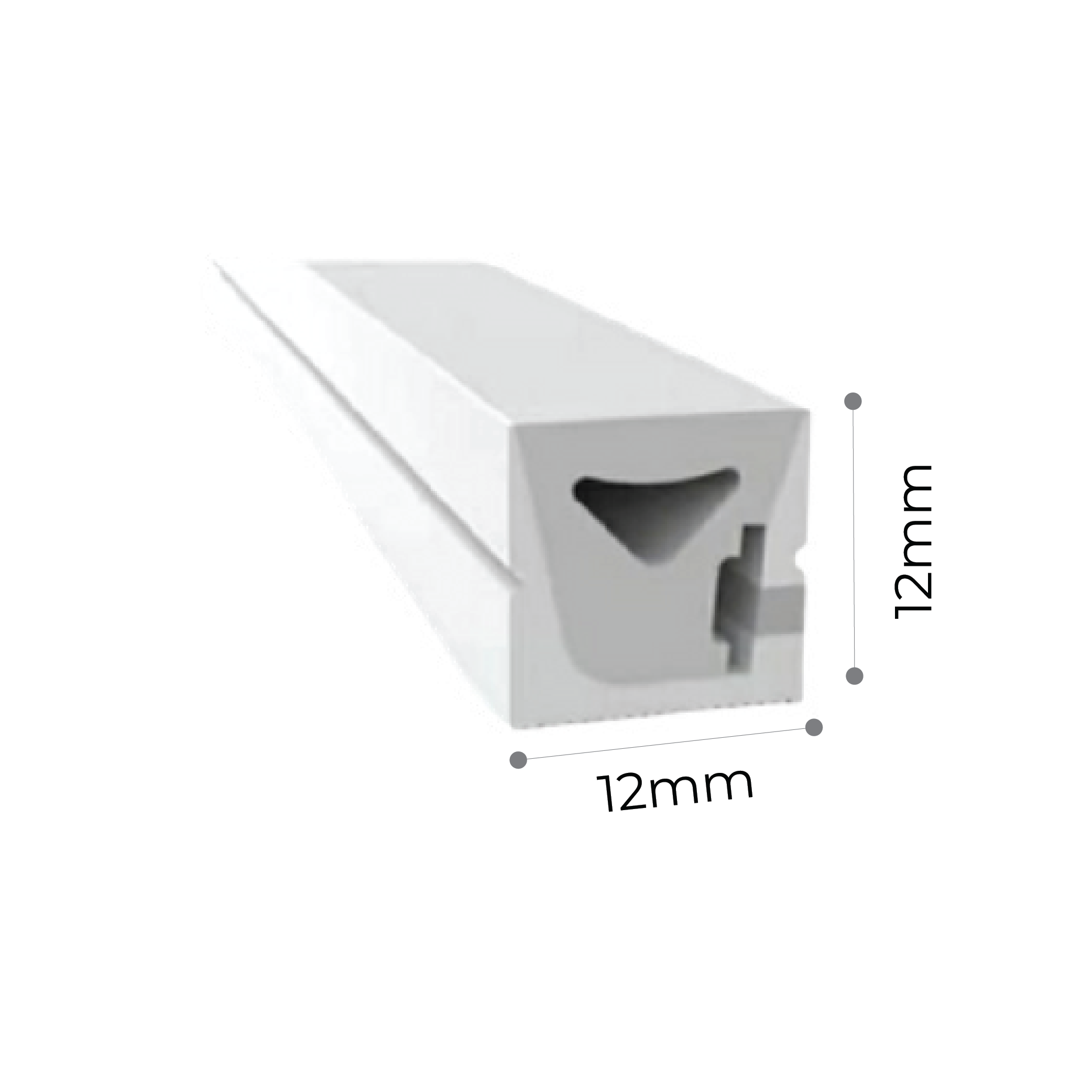

Single Line Diagram

FLEX SIDE BEND 12 LED STRIP

Specifications

TYPES

1. Surface

QUICK INFO

1. Silicon
2. IP Rating IP67
3. L70 @50,000h
4. SDCM < 3
5. Voltage/ Power 24V DC 4W
6. CRI >90

CCT (COLOUR TEMPERATURE)

1. 2700K/ 3000K/ 4000K/ RGB/ RGBW

CONTROL

1. Non-Dimmable/ Dali-Dimmable/ RGB DMX512
