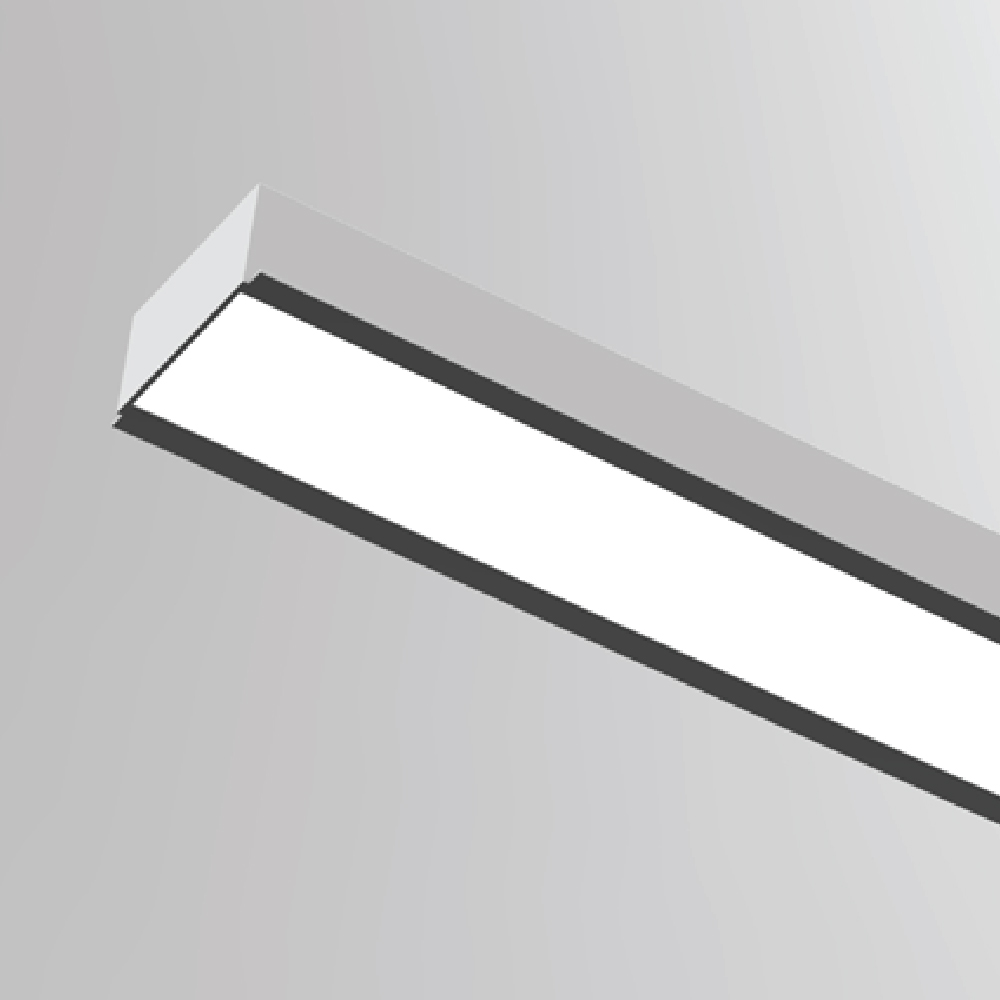

DRACO T145

Description

DRACO T145

This light features has:

•     Luminaire housing of extruded aluminum

•    Surface powder coated

•     Snap-fit system and no visible screw

•    LED PCB mounted on insert design with heat sink

•    Lens + Prismatic double diffuser

•    Energy-efficient LED with color rendering

•    Glare control with Uniform illumination

•    Pendant with cable suspension

•    Bottom opening for easy maintenance

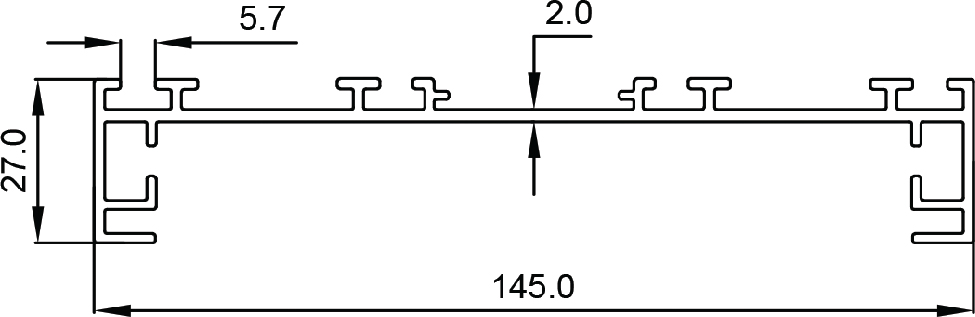

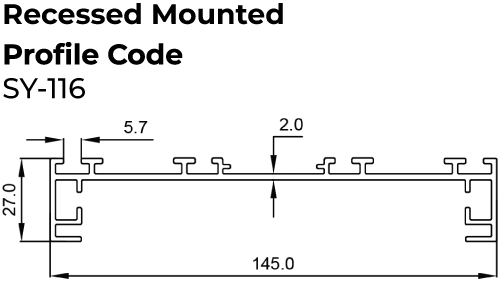

Single Line Diagram

Recessed

DRACO T145

Specifications

LED

1. CRI ≥ 90

TYPES

1. Recessed

QUICK INFO

1. SDCM < 3
2. L70 @50,000h
3. Aluminium Die-cast
4. 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
5. ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
6. Double Prismatic Diffuser

MOUNTING TYPE

1. Recessed with Frame in GYPSUM Ceiling
2. Recessed in Silhouette Techzone Ceiling
