ATLAS

Description

Atlas Downlighter fixture has :

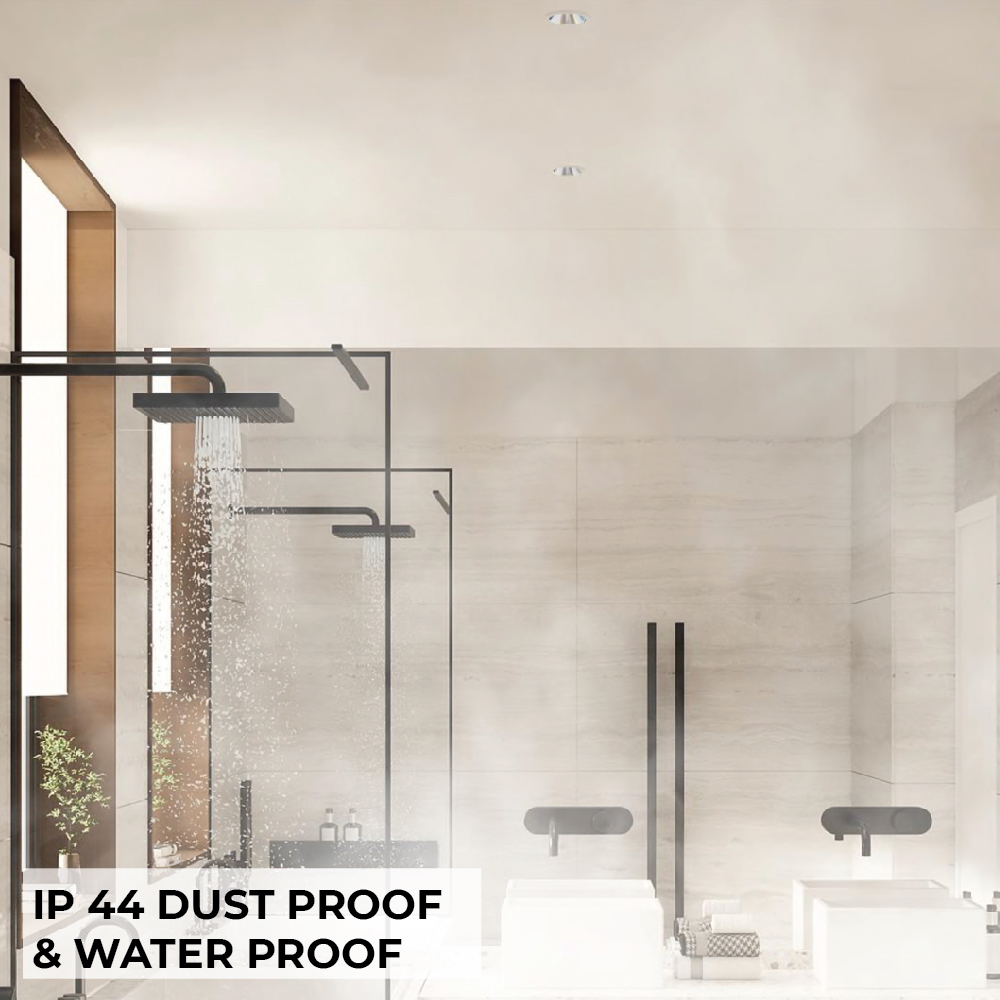

·        IP44 rated COB Recessed Downlighter

·        Die cast- aluminium Luminaire housing

·        Premium powder coated finish

·        COB (Chip on Board) technology

·        LED with effective colour rendering

·        Available in  8 °, 12 °, 15 °, 24 °, 36 °, 50 °, 60 ° beam angle options of space art atmosphere Optical structure.

·        Excellent heat dissipation structure with heat derived from the inner hole of

the heatsink

·        PMMA high luminous rate Ribbed structure lens

·        Deep Anti Glare

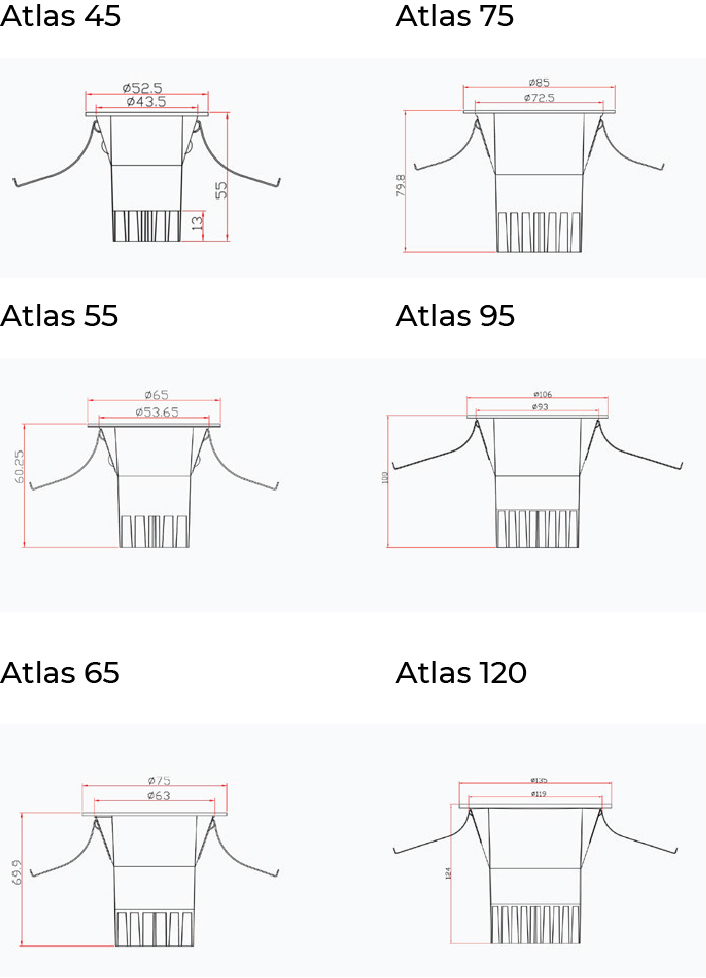

Single Line Diagram

ATLAS DOWNLIGHTER

Specifications

1. CRI ≥ 90

1. Recessed

1. L70 @50,000h
2. Aluminium Die-cast
3. 3000K/ 4000K/ 5700K/ Tunable White 2700K-6500K
4. ON-OFF/ON-OFF (FLICKER FREE) / DALI-2 DT6 / DALI-2 DT8 /DALI +
5. 3 SDCM
