MERIDIAN MODERN-2

Description

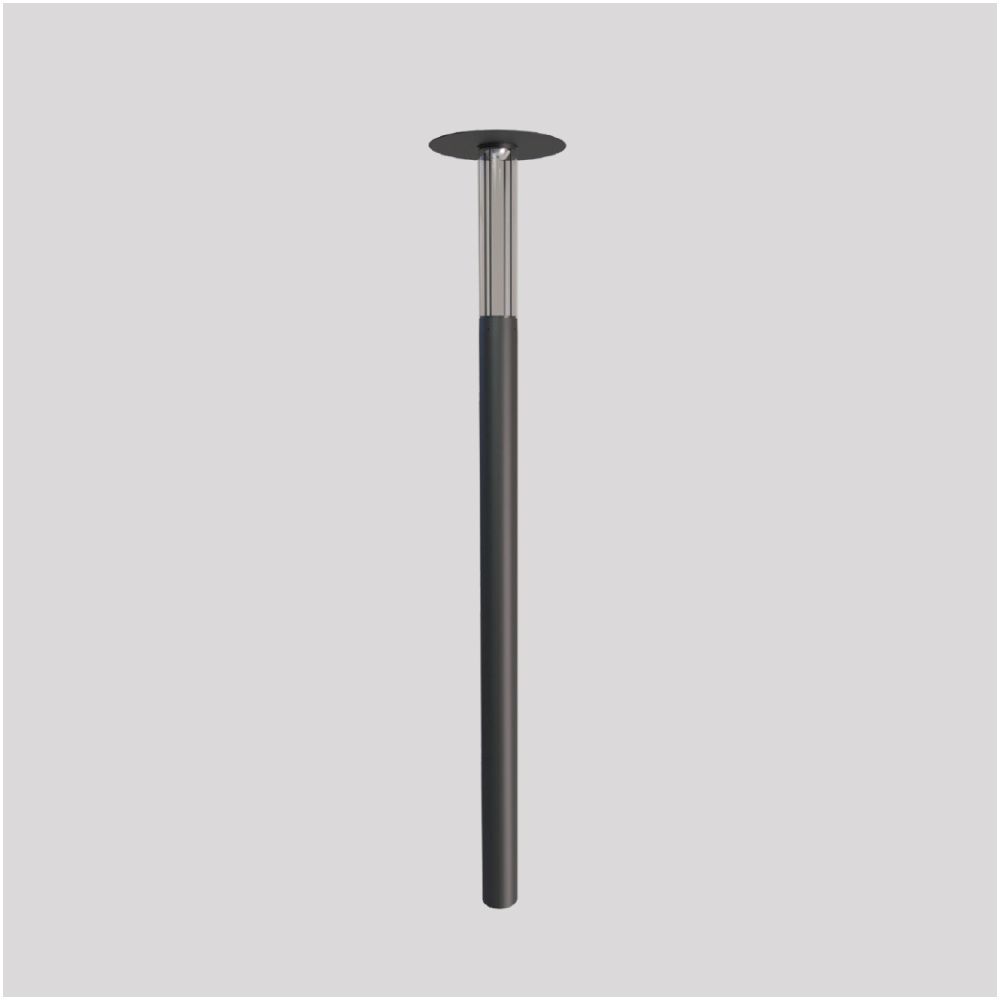

The Meridian Modern-2 Post Top light has :

• Post top luminaries made out of die-cast aluminum housing.

• A decorative crown with six nos. dia-cast aluminum arm are provided to support the housing.

• Dia cast aluminum heat sink for proper heat dissipation.

• Clear Glass diffuser for glare-free lighting.

• The fitting are painted with PU paint.

• Die-cast aluminum heat sinks for proper heat dissipation.

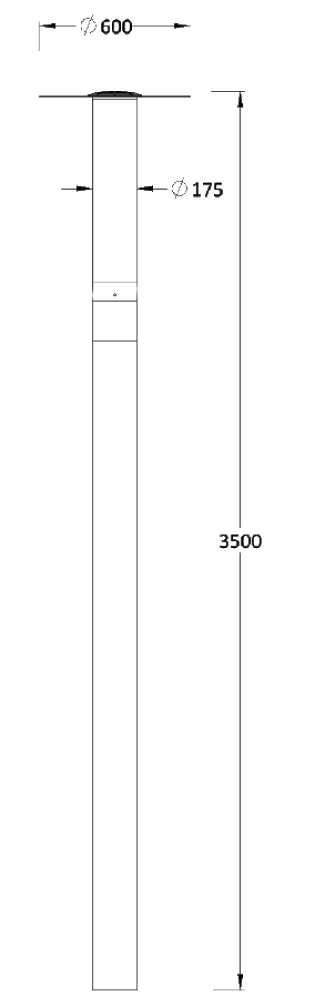

Single Line Diagram

MERIDIAN MODERN-2

Specifications

TYPES

1. Pole Mounted

QUICK INFO

1. L70 @50,000h
2. SDCM < 3
3. Clear glass
4. CRI > 70
5. Aluminium Die-cast

CCT (COLOUR TEMPERATURE)

1. 2700K/ 3000K/ 4000K/ RGB/ RGBW

CONTROL

1. DMX Controller
2. Non-Dimmable/ Dali-Dimmable
